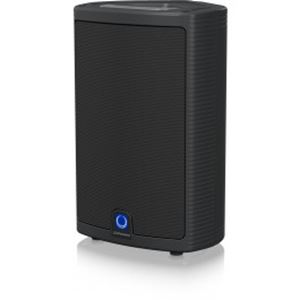

Turbosound Milan M10

Model




Components


1 x 10" LF driver
1 x 1" HF driver




Connectors


Mic/Line input: combo jack/female XLR wired pin 2 hot
Mix out: male XLR wired pin 2 hot
IEC mains connector with integrated fuseholder




Controls




Controls


Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off




System Data




Frequency Range


55 Hz–18 kHz ±3 dB
50 Hz–20 kHz -10 dB




Dispersion @-6 dB pts


90° H x 60° V




Max SPL (peak)


126 dB




Equalisation


Bass: ±6 dB @ 80 Hz
Treble: ±6 dB @ 12 kHz




Boost Frequency


N/A




Indicators




Power LED


Blue




Signal LED


Green




Limit LED


Red




Clip LED


Red




Circuit Protection




Amplifier Protection


Full short circuit, open circuit, thermal




LF/HF Driver




Max Output Power


LF: 500 W HF: 100 W




Audio Inputs




Input Sensitivity


Mic: -32 dBu; Line: -2 dBu




Input Impedance


Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced




Power Supply, Voltage (Fuses)




UK / Australia / Europe


220–240 V~, T 3.15 A H 250 V




Power consumption@ 1/8 max power


80 W




Rigging options


6 x M10 threaded internal rigging points




Construction / Dimensions / Weight




Construction


Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing




Dimensions (H x W x D)


522 x 329 x 294 mm (20.6 x 13 x 11.6")




Net weight


13.3 kg
