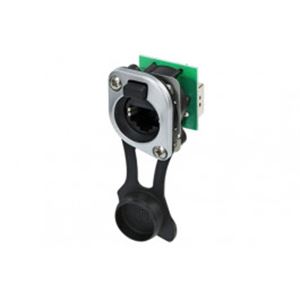

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Electrical
Contact resistance < 10 mΩ
Dielectric strength 1 kVdc
Frequency range 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage < 50 V
Transmission performance CAT 5e
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime 1000 mating cycles
Panel thickness 2 mm - 4 mm , 0.08" - 0.16"
Wiring Feedthrough
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Chromium
Environmental
Flammability UL 94 V-0
Standard compliance TIA/EIA 586B, IEC11801
Temperature range -30 °C to +80 °C
Protection class IP65, UL50E (mated or sealing cap closed)
Technical data sheet available on the User Manual tab.
