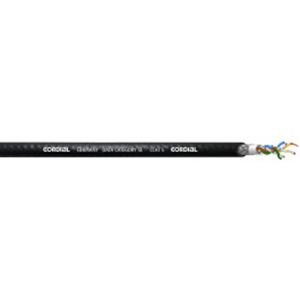

Cordial CCAT 5

If you’re looking for a highly mobile, robust network cable that can even be used in a drag chain on stage, you should turn to our CCAT 5 data cable. Its mechanical properties meet the CAT 5e standards for network cables and transmit data within a bandwidth of 100 MHz. A sturdy PUR jacket protects the robust and extremely flexible cable from environmental damages and mechanical strains.






Mechanical data




Conductor area
0,15 mm² (AWG 26)


Composition of conductor
19 x 0,1 mm bare copper


Conductor isolation
PE


Composition of cores
4 pairs twisted


Screen
S/UTP


Pair Screen
-


Overall jacket
PUR


Overall diameter
6,4 mm


Weight
51 g/m



Working temperature




mobile
(-5 °C) - (+60 °C)


fixed
(-25 °C) - (+60 °C)



min.Bending radius




mobile
~ 61 mm


fixed
~ 30 mm



Electrical data




Conductor resistance
142 Ω / km


Capacity (cond./cond.)
50 nF / km



Attenuation




1 MHz
3,1 dB (100m)


4 MHz
6,4 dB (100m)


10 MHz
9,9 dB (100m)


20 MHz
13,8 dB (100m)


100 MHz
33,0 dB (100m)


Characteristic impedance
100 Ω ± 15 % (100 MHz)



Crosstalk Attenuation (NEXT)




1 MHz
62 dB (100m)


4 MHz
53 dB (100m)


10 MHz
47 dB (100m)


20 MHz
42 dB (100m)


100 MHz
32,0 dB (100m)


Test voltage
500 V eff.
