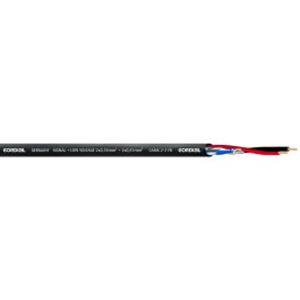

Cordial CAMX 2-2 FR

Mechanical data




Conductor area
0,35mm² (AWG 22) // 0,81mm² (AWG 18)


Composition of conductor
7 x 0,25 mm tinned copper // 16 x 0,254 mm² tinned copper


Conductor isolation
PE // PVC


Composition of cores
2 twisted pairs


Pair screen / screen
foil (PT/AL) + drain wire


Overall jacket
flame-retardant PVC black


Overall diameter
6,35 ± 0,3 mm


Weight
50 g/m



Working temperature




mobile
(-5 °C) - (+70 °C)


fixed
(-25 °C) - (+70 °C)



min.Bending radius




mobile
~ 63 mm


fixed
~ 32 mm



Electrical data




Conductor resistance
56 Ω / km (0,35²) // 23 Ω / km (0,81²)


Capacity (cond./cond.)
45 pF / m (0,35²)


Capacity (cond./screen)
85 pF / m (0,35²)



Attenuation




100 kHz



1 MHz
3,4 dB (100m)


4 MHz



10 MHz
7,1 dB (100m)


20 MHz
9,1 dB (100m)


100 MHz




Characteristic impedance




100 kHz



1 MHz
106 Ω ± 10 %


4 MHz
106 Ω ± 10 %


10 MHz
106 Ω ± 10 %


Test voltage
1000 V eff.
